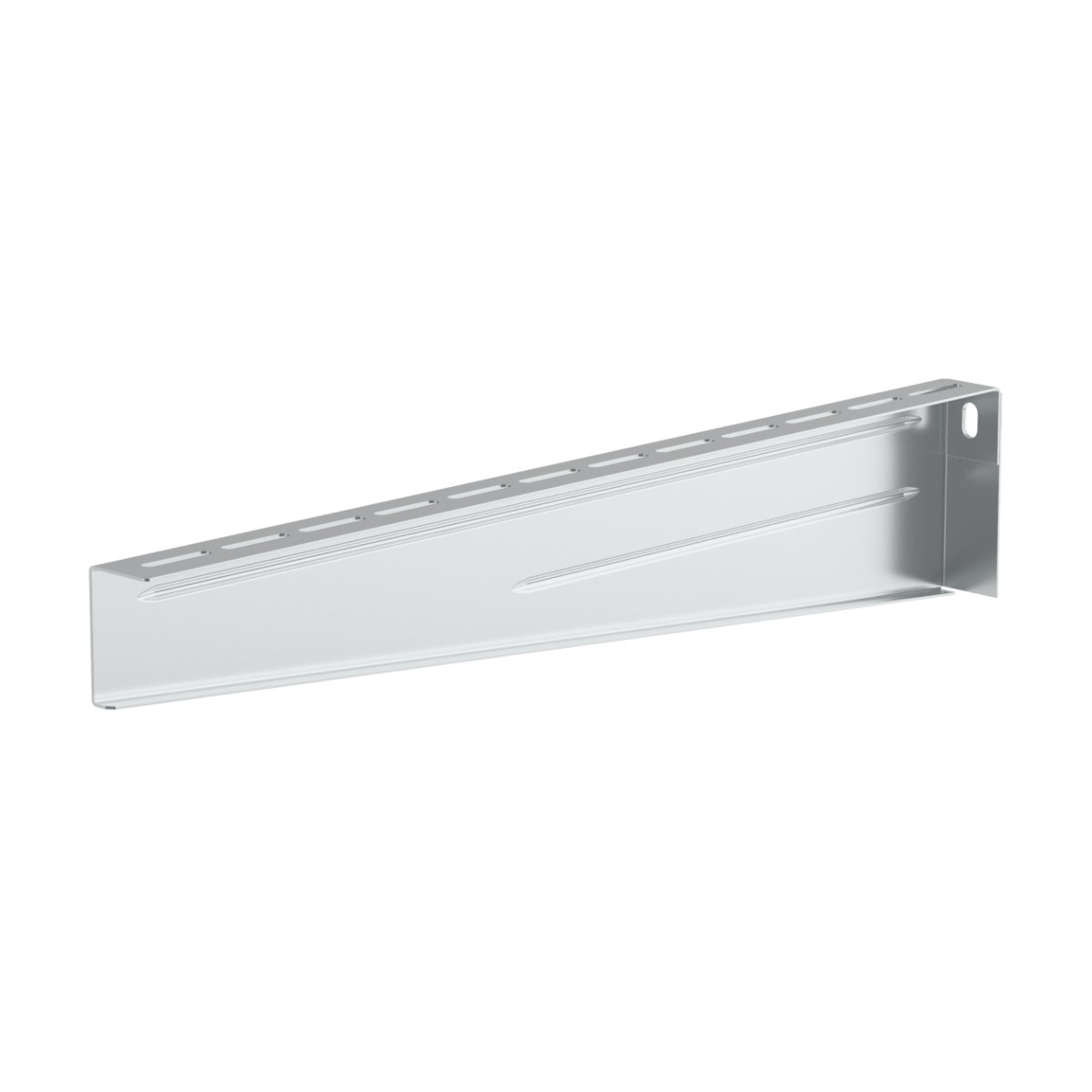

illustrative picture
DS_ZM_EN
| EAN kods | 8595568940698 |
| Muitas kods | 83024190 |
| Svars | 1,0494 kg/pcs |
| Virsmas apdare | Magnelis® |
| Maks. slodze | 130 kg |
| Izmērs A | 620 mm |
| Izmērs B | 119 mm |
| Kabeļu renēm ar platumu | 600 mm |
| Kabeļu paplātes augstumam | 35 - 110 mm |
The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 are used. For fastening to the ceiling profile SPLN, SPSN or SPU, a screw S 10X20, a nut M 10 and a washer PD 10 are used. For fastening the cable tray to the bracket DS, screws NSM 6X10 are used.
