EAN kods | 8595568940667 |
Muitas kods | 83024190 |
Svars | 0,4098 kg/pcs |
Virsmas apdare | Magnelis® |
Maks. slodze | 130 kg |
Izmērs A | 320 mm |
Izmērs B | 74 mm |
Kabeļu renēm ar platumu | 300 mm |
Kabeļu paplātes augstumam | 35 - 110 mm |

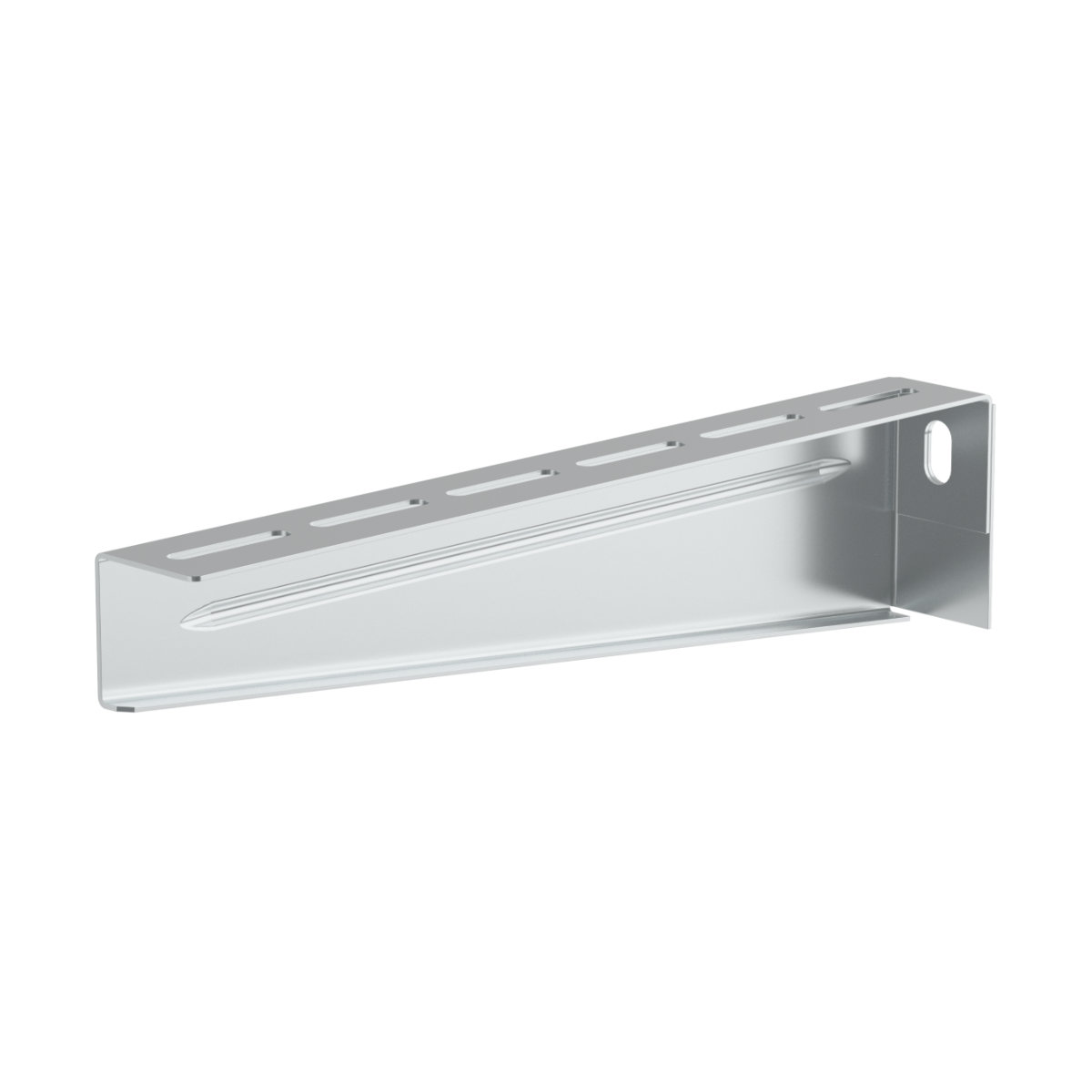

The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 are used. For fastening to the ceiling profile SPLN, SPSN or SPU, a screw S 10X20, a nut M 10 and a washer PD 10 are used. For fastening the cable tray to the bracket DS, screws NSM 6X10 are used.
