EAN kods | 8595568940261 |
Muitas kods | 73262000 |
Svars | 1,7100 kg/m |
Virsmas apdare | nerūsējošais tērauds |
Platums | 300 mm |
Augstums | 60 mm |
Garums | 3000 mm |
Ugunsnoturība | P90-R, E90, PS90 |
Saskaņā ar standartiem | ČSN EN 61537 |
Ugunsizturības standarti | ČSN 73 0895, DIN 4102-12, STN 92 0205 |
Vada diametrs | 4,4 mm |
Apakšdaļas pinums | 50x100 |
Maks. slodze ugunsizturībai | 5 - 10 kg |

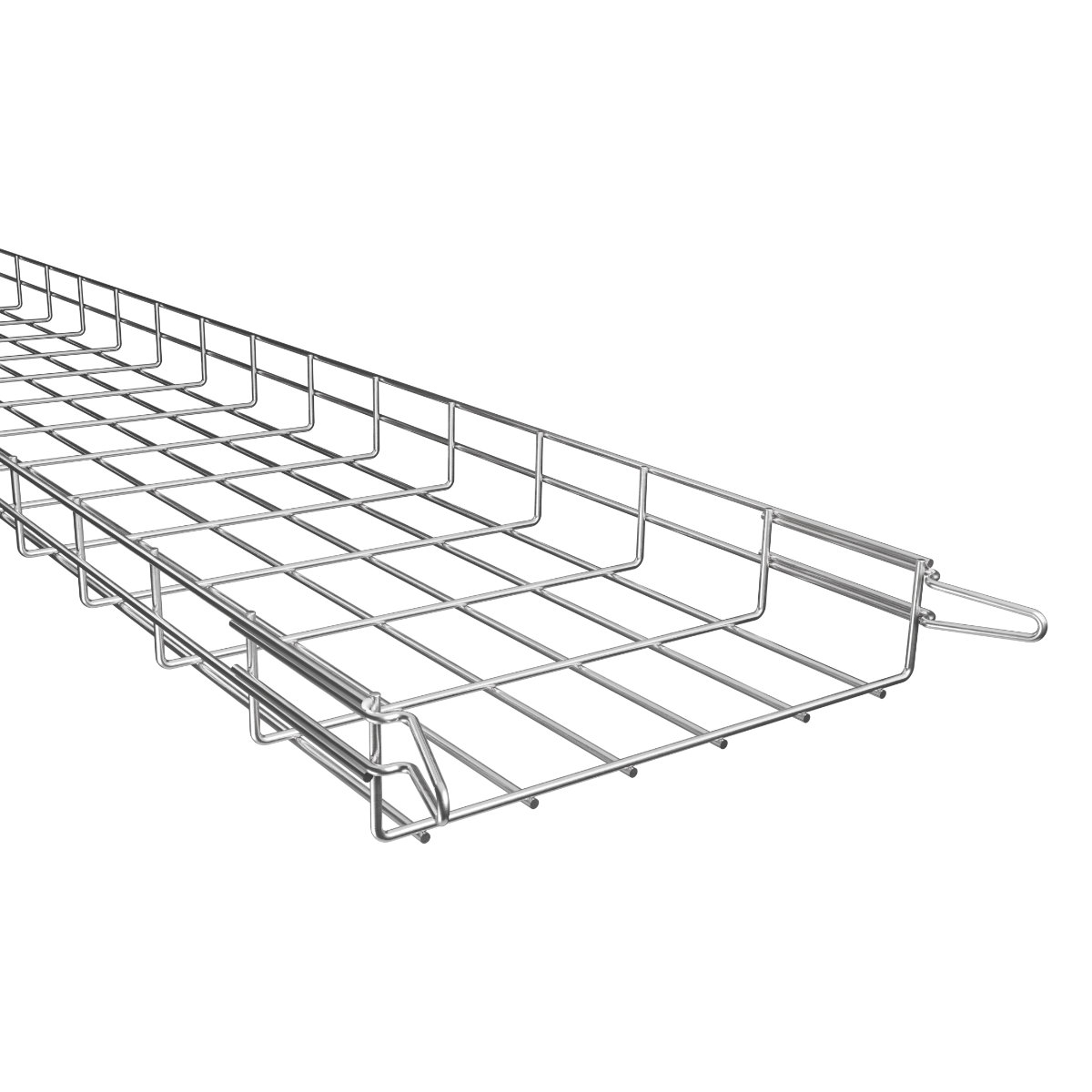

Each wire tray has integrated connectors at one end designed to firmly connect the route. In this way the conductive connection is fulfilled.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
