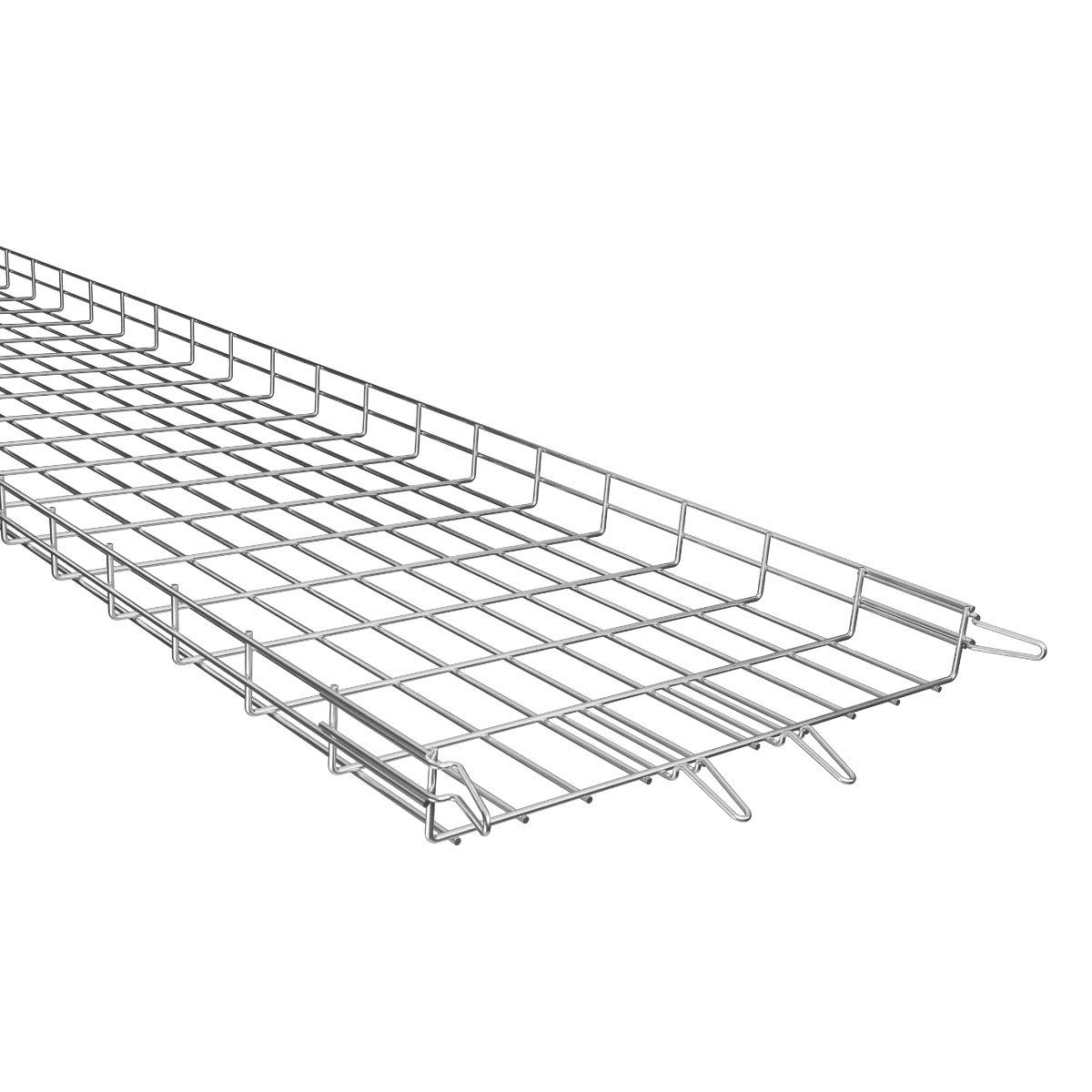

illustrative picture
DZI_V_EN
| EAN kods | 8595568939982 |
| Muitas kods | 73262000 |
| Svars | 2,7100 kg/m |
| Virsmas apdare | Elektrolītiski cinkots |

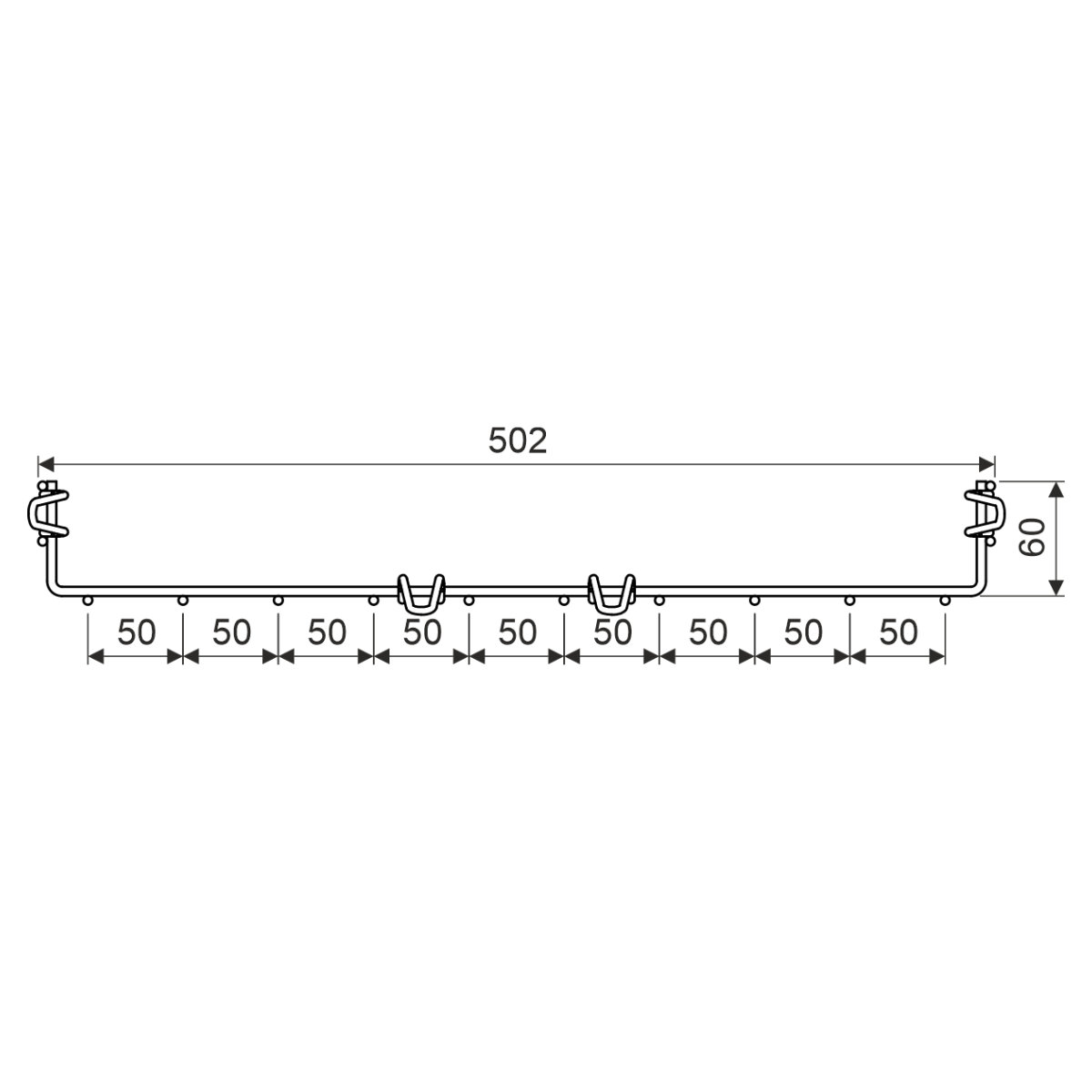

| Platums | 500 mm |
| Augstums | 60 mm |
| Garums | 3000 mm |
| Saskaņā ar standartiem | ČSN EN 61537 |
| Vada diametrs | 4,6 - 4,8 mm |
| Apakšdaļas pinums | 50x100 |
| Savienojuma detaļu skaits apakšdaļā | 2 |
Each wire tray has integrated connectors at one end designed to firmly connect the route. In this way the conductive connection is fulfilled.
Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
