DZSZ_V_EN
| EAN kods | 8595568940148 |
| Muitas kods | 73269098 |
| Svars | 0,2090 kg/pcs |
| Virsmas apdare | cinkots Sendzimir |
| Platums | 83 mm |
| Augstums | 125 mm |
| Saskaņā ar standartiem | ČSN EN 61537 |
| Metāla loksnes biezums | 2 mm |
| Kabeļu renēm ar platumu | 60 mm |

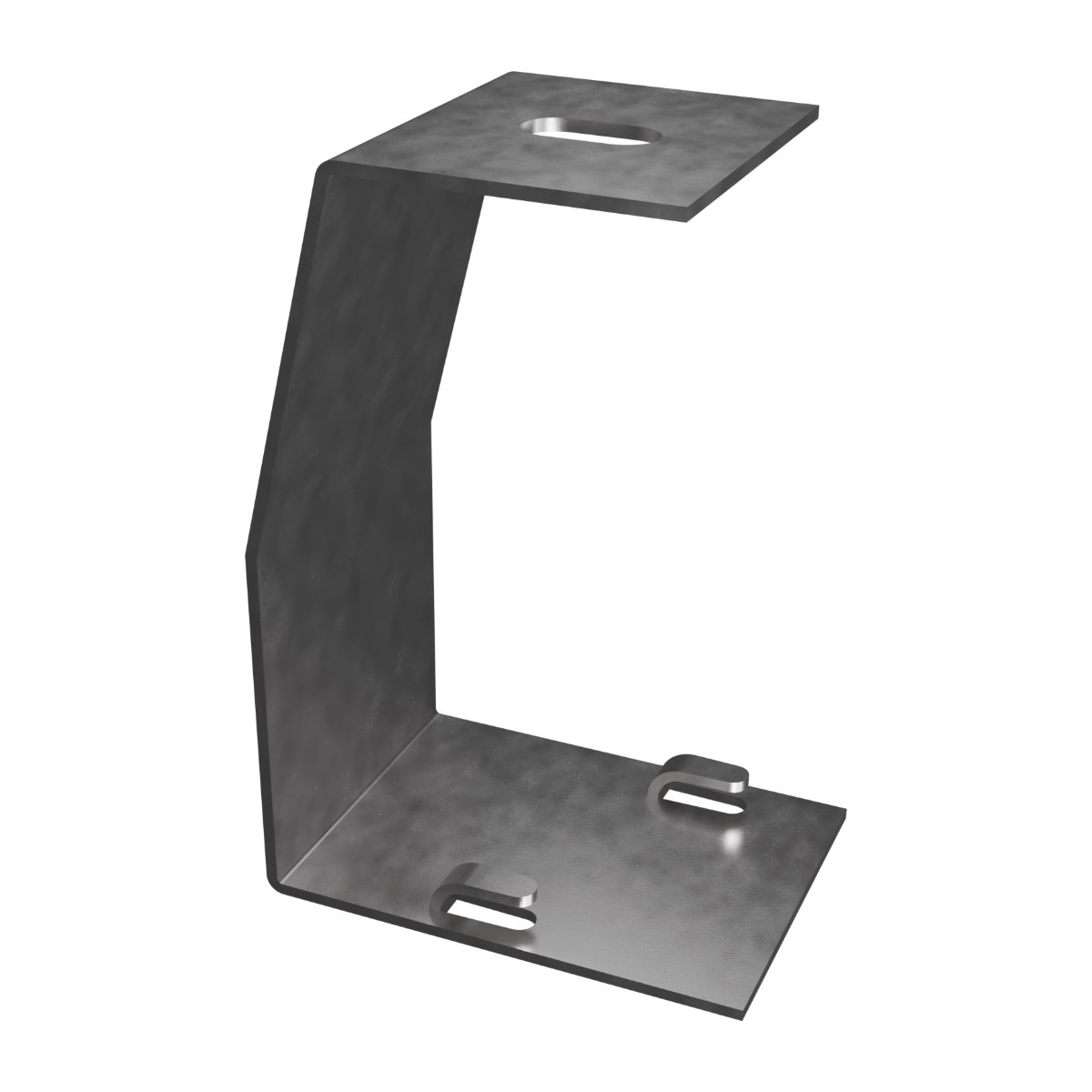

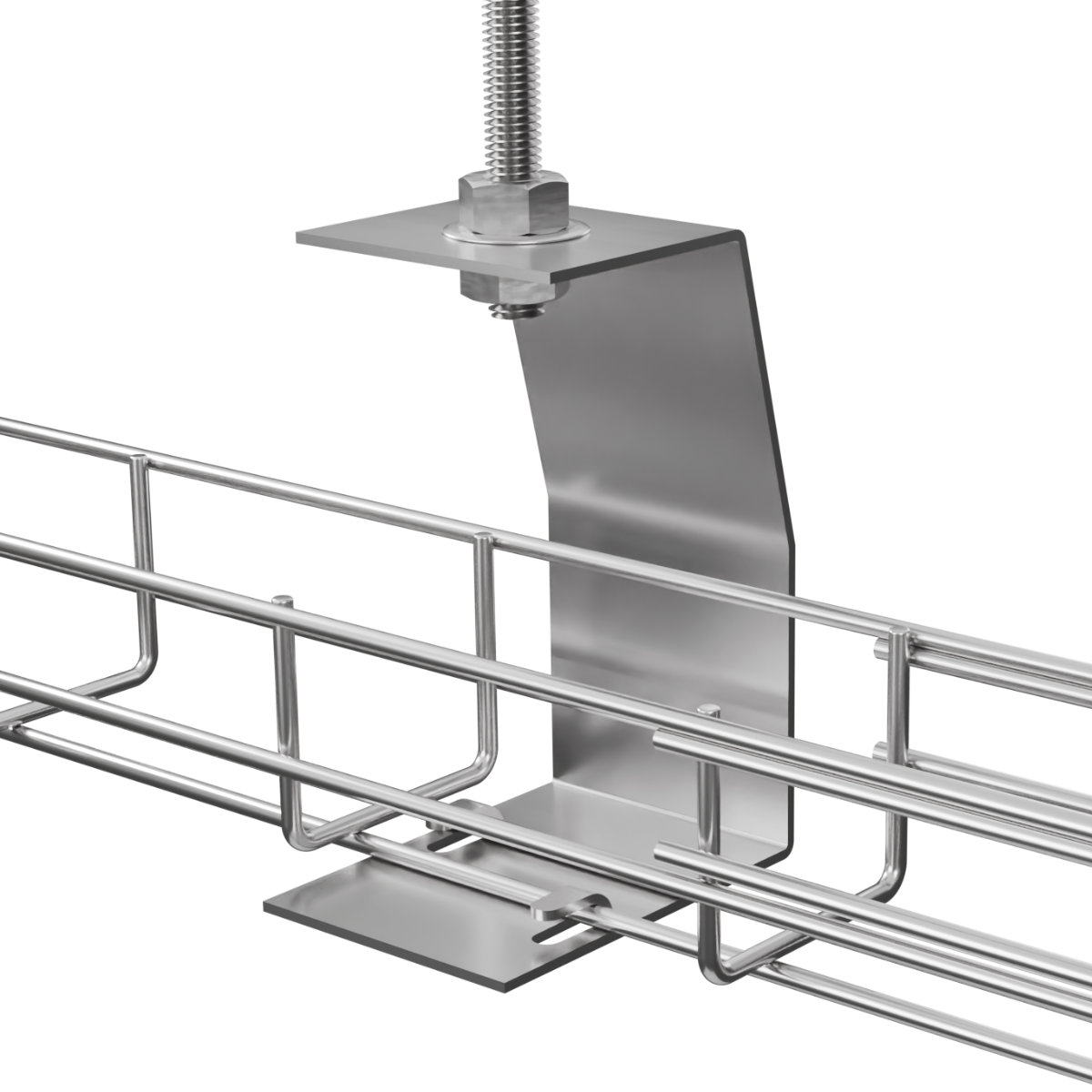

The central hanger is designed for fastening of the wire trays from ceiling together with a threaded rod Ø 8 mm and 2 nuts M 8. The cable tray is inserted into the prepared tabs, the ends of the tabs are squeezed and the tray is attached to the hanger.
